2005 LS2 6MC 24 Tooth Reluctor

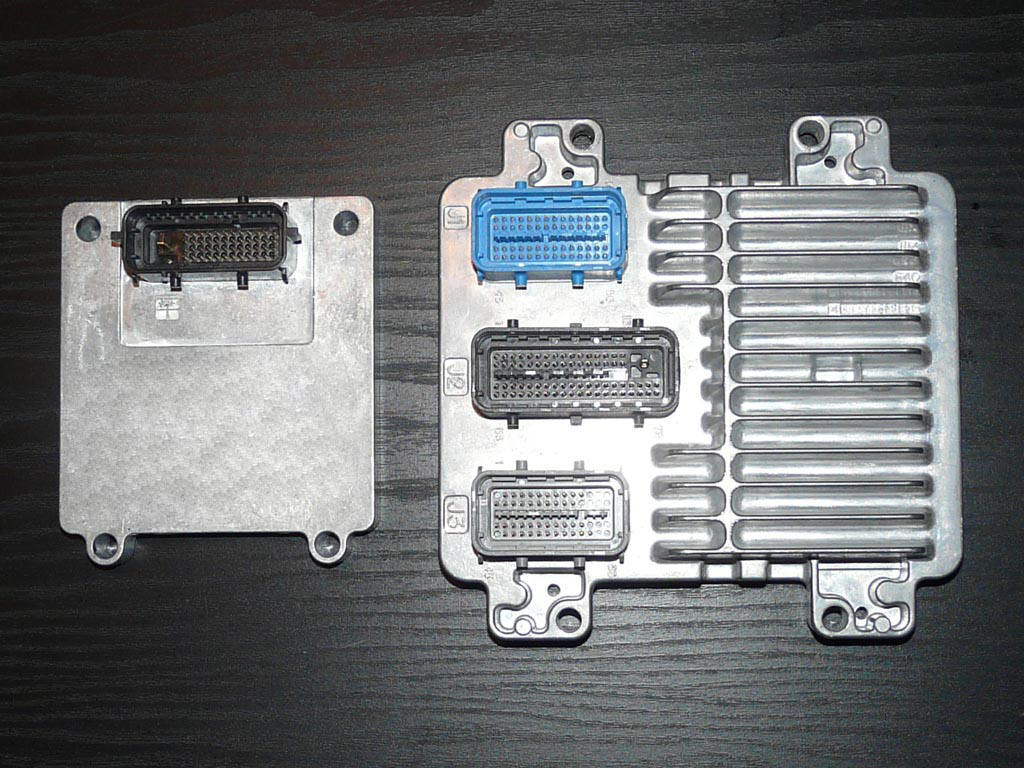

E40 ECM and TCM

Torana 9" and Hotrod 7" Stainless dual diaphragm boosters

This will increase the clearance between the coil packs and the booster

7" Stainless dual diaphragm booster and billet master

Modified Camaro Oil Pan with CRS engine mounts

Modified Camaro Oil Pan with CRS engine mounts

Moroso 20140 oil pan and CSR 100U Chevy starter modified to suit LS.

Moroso do not supply a crank scraper. The Camaro windage tray/crank scraper # 1258253 can be modified to suit.

Camaro windage tray/crank scraper modified to suit Moroso Pickup.

Camaro Windage Tray Top.

Commodore/GTO windage tray bottom

Norm Butler Headers

1.75" Primaries, 2" Secondaries, 2.5" Collector.

Prestige Exhaust CAT back system.

2.5" CAT, 2.5" Muffler, 2.25" tailpipes.

Dummy fuel tank to check clearances.

Modified CSR100U Starter Motor

Modified Tuff Mount

Modified Tuff Mount

Modified Tuff Mount

Modified Tuff Mount

Airbox

Airbox

Airbox
